HVA012-B HydroMesh HydroValve Actuator With Cables
Quantity:
Ships within 48 hours.
Use with 12 VDC or 24 VAC solenoids!
The HydroMesh HydroValve Actuator brings a new level of versatility to solenoid valve actuation by adapting to most 12 VDC and 24 VAC solenoids. Simply select which solenoid valve type you are using in the HydroMesh Controller menu and your setting will be wirelessly communicated to the actuator via the mesh network.
Get longer life from your solenoid valve coils and lower power consumption due to the ability to reduce current after initial actuation.
Most dry contact controllers are simple relays that switch the electrical circuit on and off with a resulting electrical current determined by the input power supply and device connected to the output terminal. Instead of a simple on/off command, the HydroMesh HydroValve Actuator actively monitors and adjusts the current based on the type of device selected.

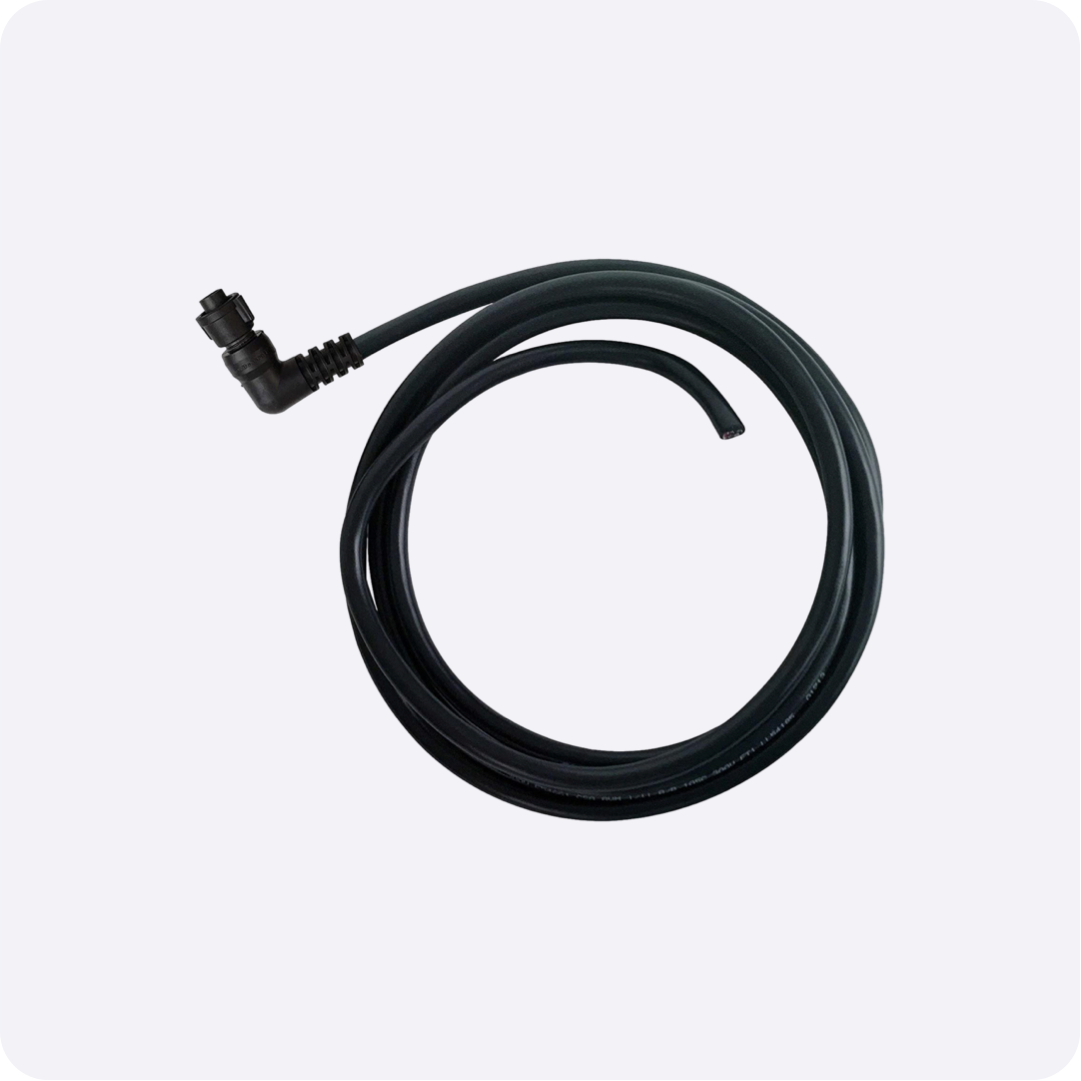

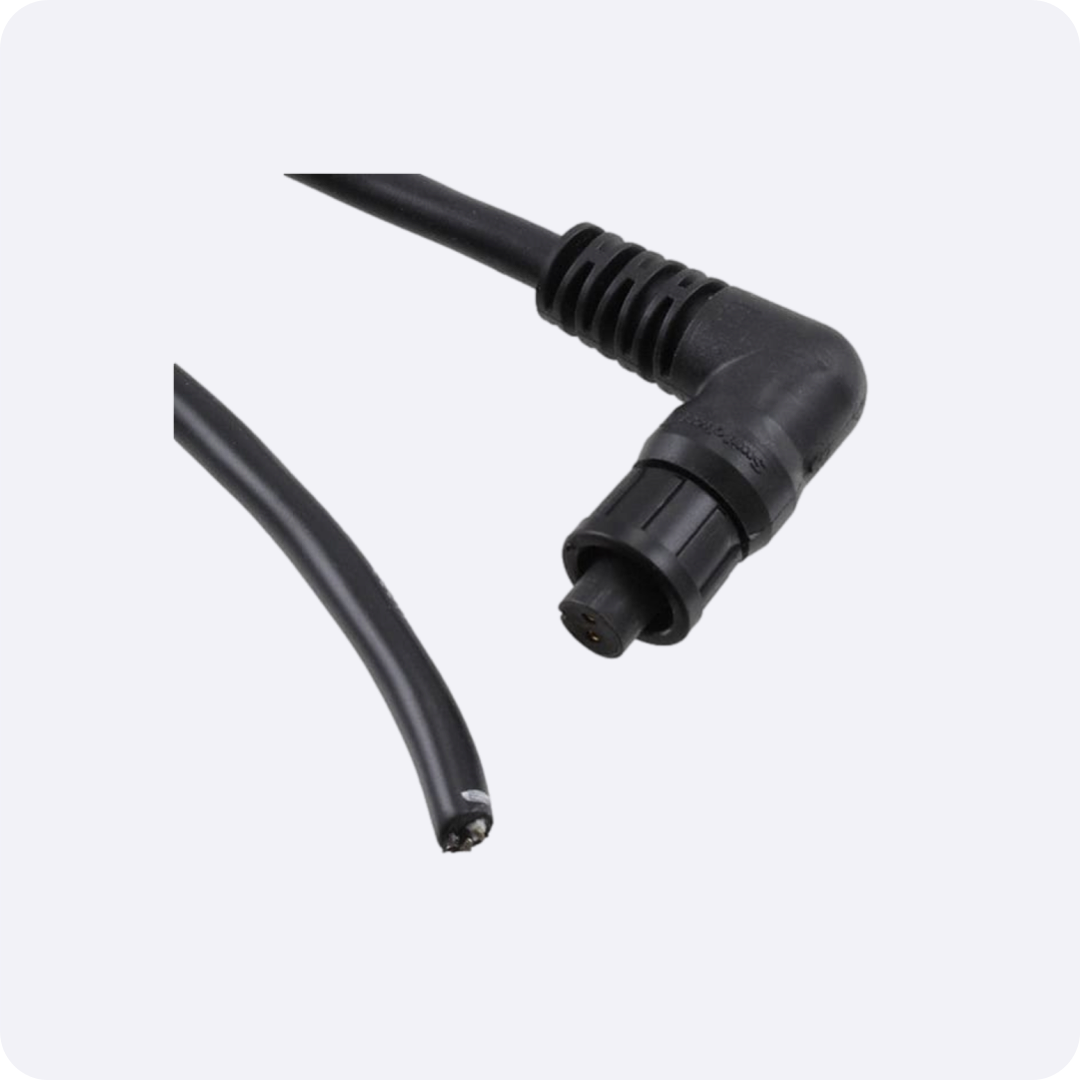

NOTE: This version includes four 2-meter (6.6 ft) cables. Other versions are available with connectors to make your own cables .

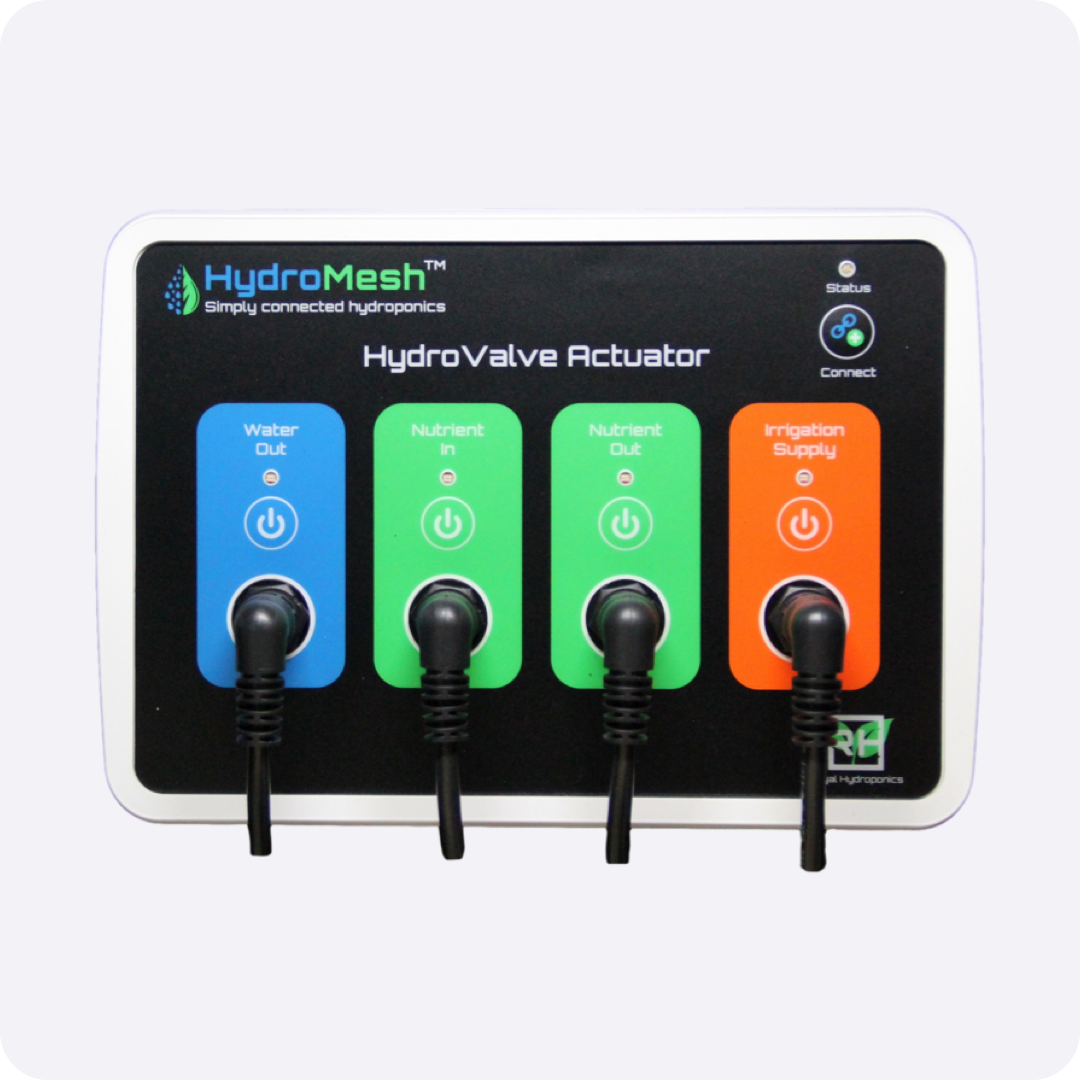

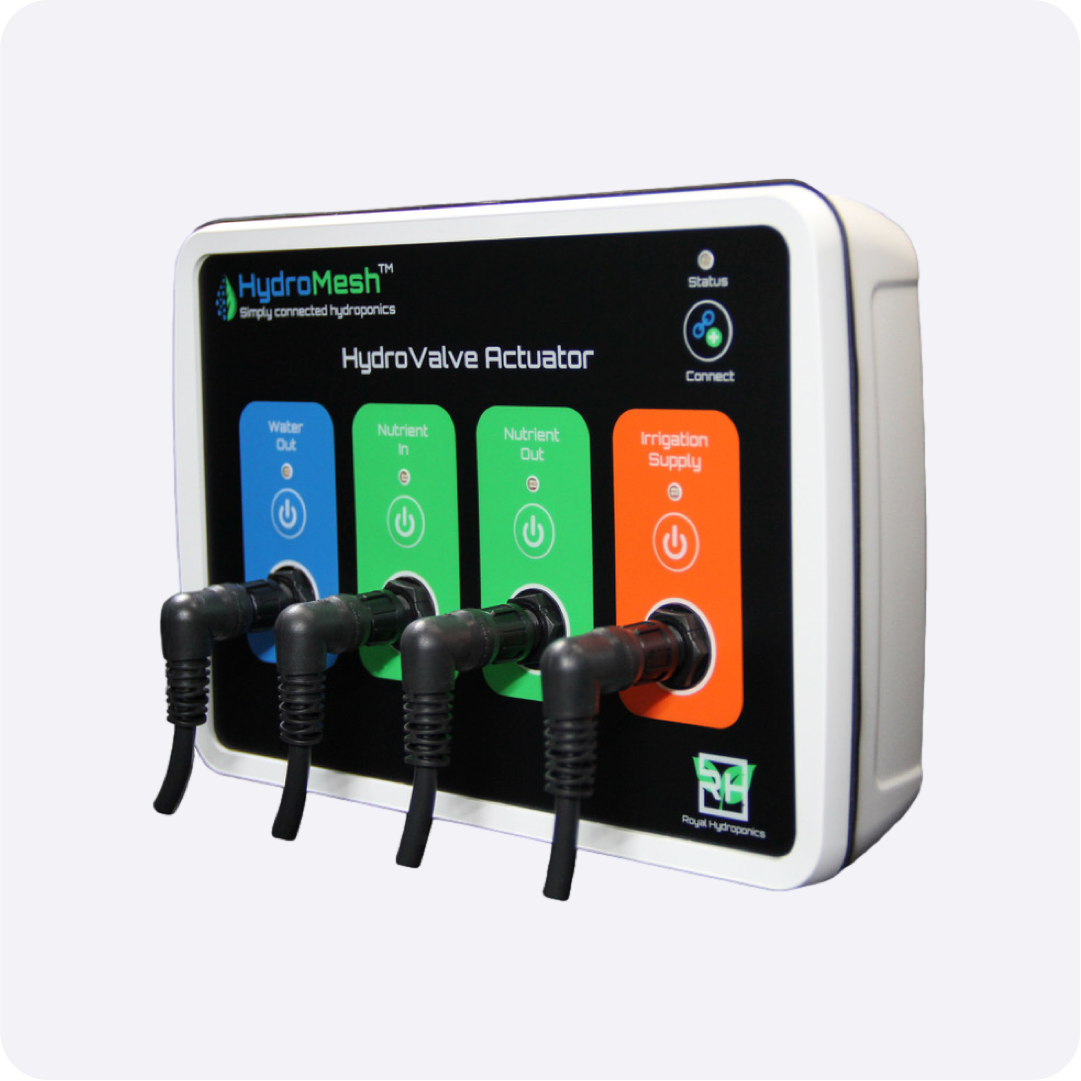

HydroMesh HydroValve Actuator
-
Model: HVA012-B
-
Easy push-button Wi-Fi Protected Setup with HydroMesh touch screen controllers
-
Configurable to operate 12VDC or 24VAC solenoids via HydroMesh controllers
-
USB-C power port
-
Size: 8.5 x 5.9 x 1.8 inches (21.5 x 15.0 x 4.6 cm)
-
Weight: 1.50 lbs (0.68 kg)

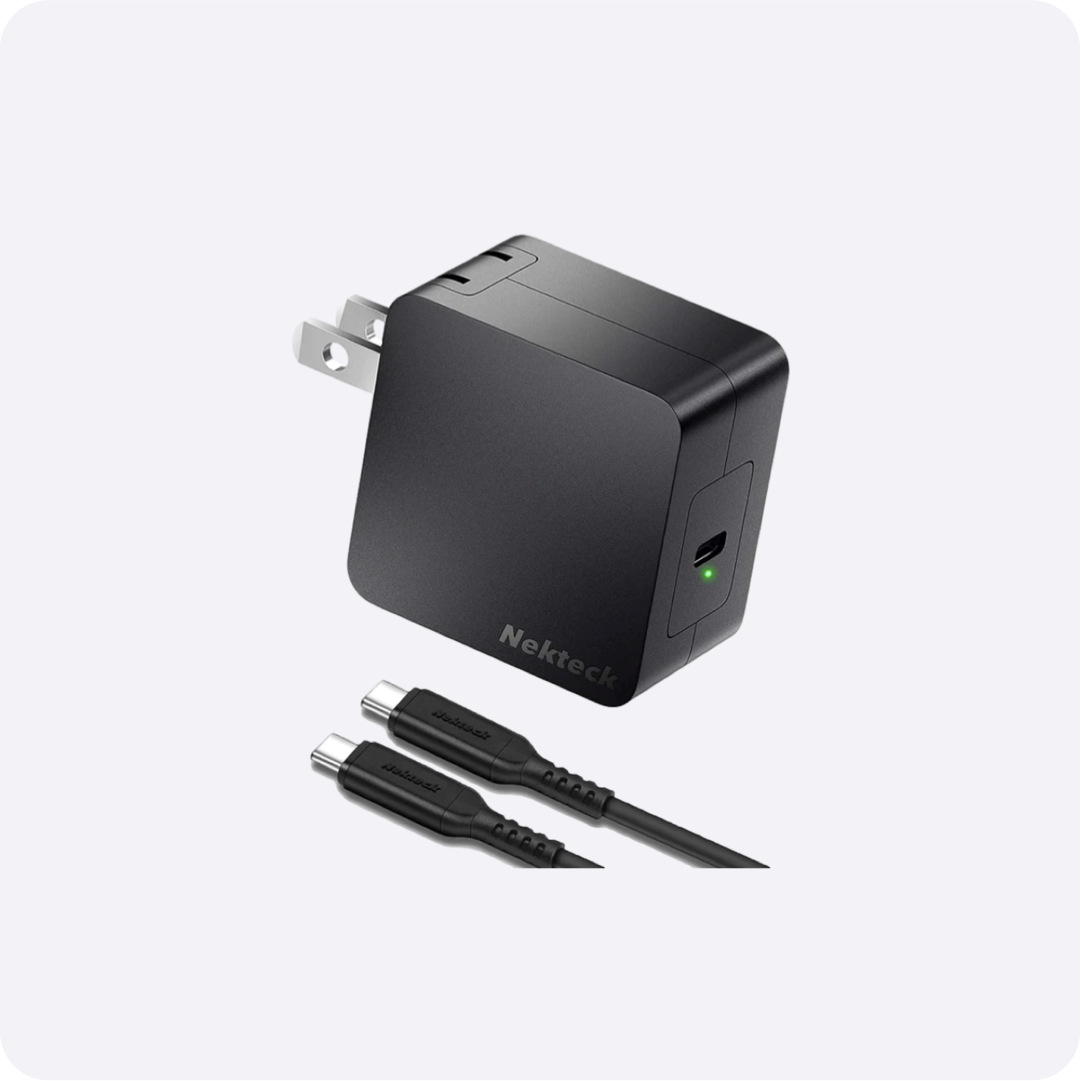

Power Adapter
-
USB-C power delivery adapter
-
Total Wattage: 60W
-
Input 100-240V/1.5A(Max) 50-60Hz
-
Output: 5V/ 3A, 9V/3A, 12V/ 3A, 15V/3A, 20V/3A
Power Cable
-
2m (6.6ft) USB-C to USB-C cable
