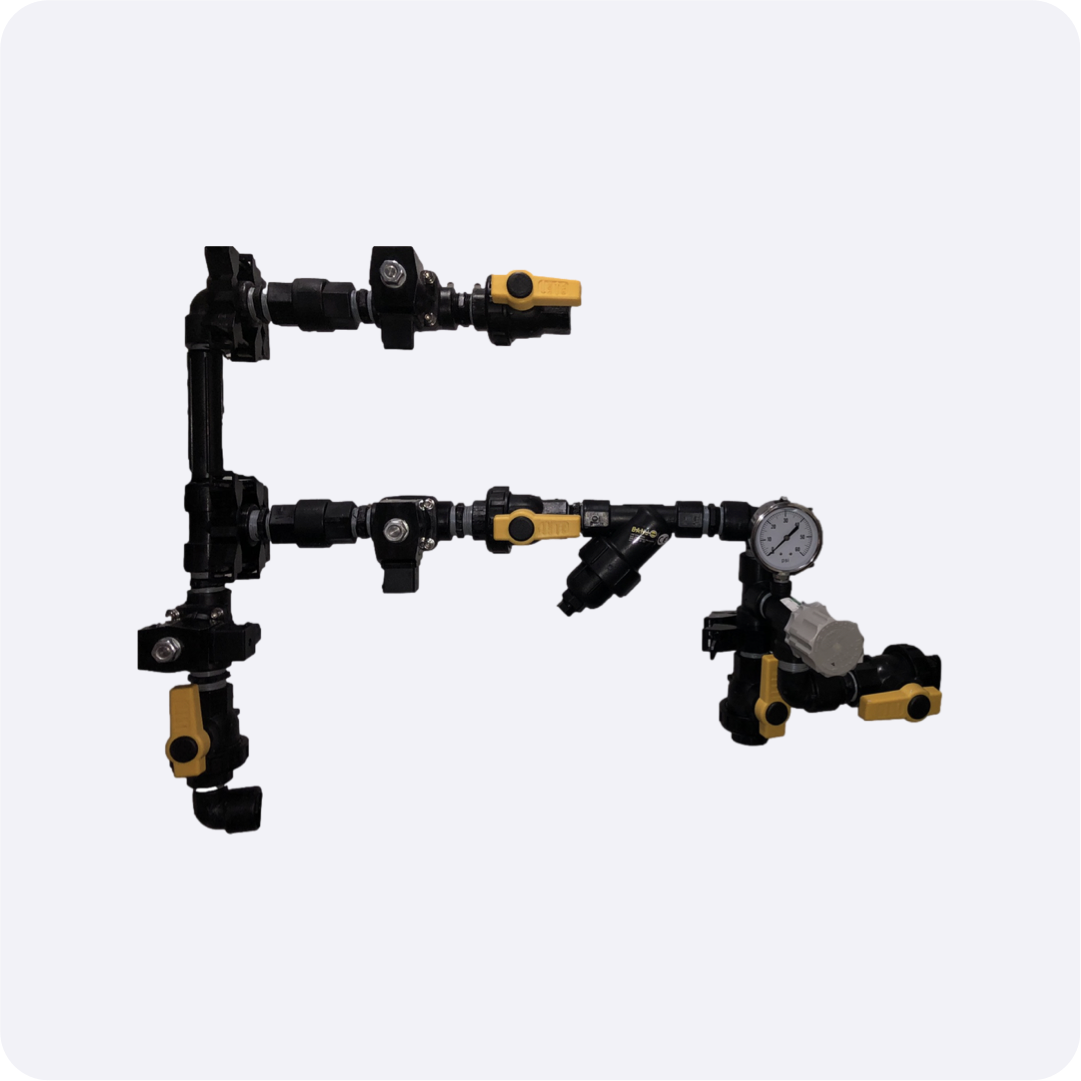

HVK-1 HydroMesh 2+1 Solenoid Valve Circuit
Quantity:
Special order item. Ships 1 week from time of order.
As seen on Instagram @sharkmousefarms !
This hydraulic circuit consists of the following.
-
Model: HVK-1
-
Circuit 1: Nutrient Solution
-
All polypropylene fittings eliminates P65 warnings from using PVC or CPVC fittings.
-
One 3/4" 12 VDC Normally Closed Nylon solenoid valve, high reliability with fewer moving parts than most 24 VAC solenoid valves
-
Three high quality 3/4" shut-off valves with integral unions
-
Back pressure regulator (used to keep pressure from building up in pump if valve is closed)
-
2.5" stainless steel liquid filled pressure gauge, 60 psi
-
3/4" Y-strainer with poly ribbed stainless steel screen
-
3/4" poly and stainless steel check valve to prevent back flow contamination
-
Return: Direct Circuit 1 back to the nutrient solution tank
-
All polypropylene fittings eliminates P65 warnings from using PVC or CPVC fittings.
-
One 3/4" 12 VDC Normally Closed Nylon solenoid valve, high reliability with fewer moving parts than most 24 VAC solenoid valves
-
One high quality 3/4" shut-off valve with integral unions
-
Back pressure regulator (used to keep pressure from building up in pump if valve is closed)
-
2.5" stainless steel liquid filled pressure gauge, 60 psi
-
3/4" Y-strainer with poly ribbed stainless steel screen
-
3/4" poly and stainless steel check valve to prevent back flow contamination
-
Irrigation Supply: Main line to the supply the dripper lines
-
All polypropylene fittings eliminates P65 warnings from using PVC or CPVC fittings.
-
One 3/4" 12 VDC Normally Closed Nylon solenoid valve, high reliability with fewer moving parts than most 24 VAC solenoid valves
-
One high quality 3/4" shut-off valves with integral unions
-
Four (4) wall mounts
